How To Make a metal ball hook swivel

[ukspeedbag]

Having had several people ask how I made the metal ball hook swivel, I decided to post a break down with images.

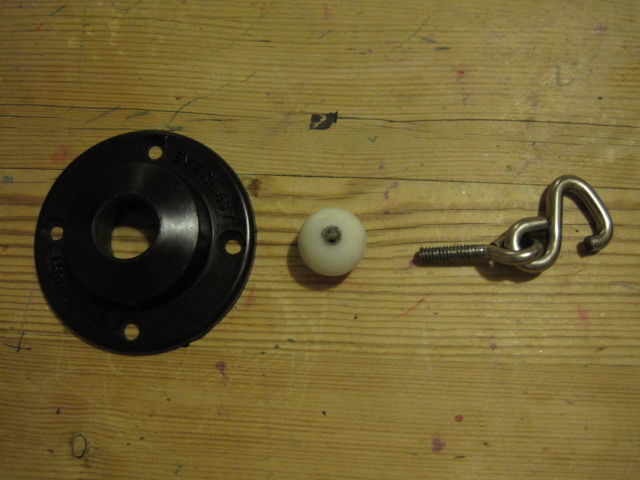

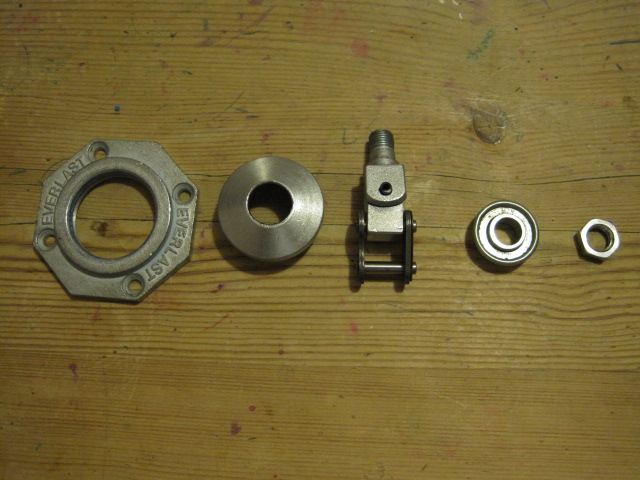

I started with 2 Everlast swivels, a plastic ball hook and a chain link and stripped them down. (pics #1-2)

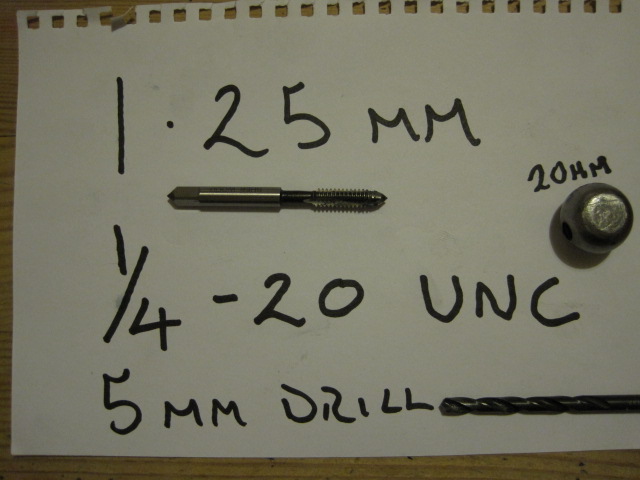

I used a 22mm diameter metal ball. These can be purchased from internet sites or in my case, I used vehicle suspension ball joint. The ball will need drilling and tapped out to suit the 'S' hook thread. The thread size is 1.25mm pitch, but this wasn't available to me, so I compromised with a UNC 1/4-20. (pic #3)

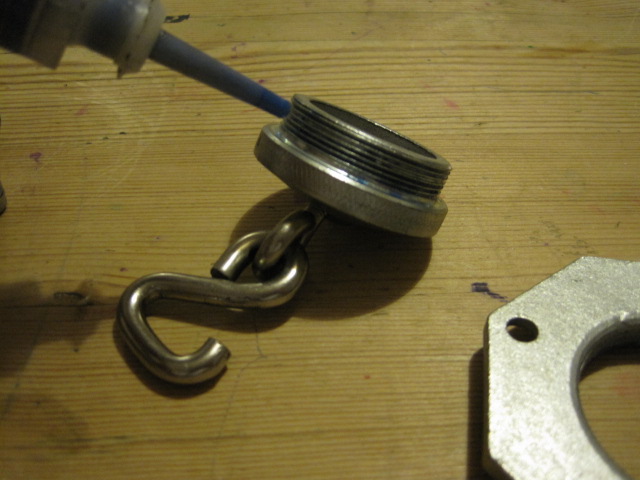

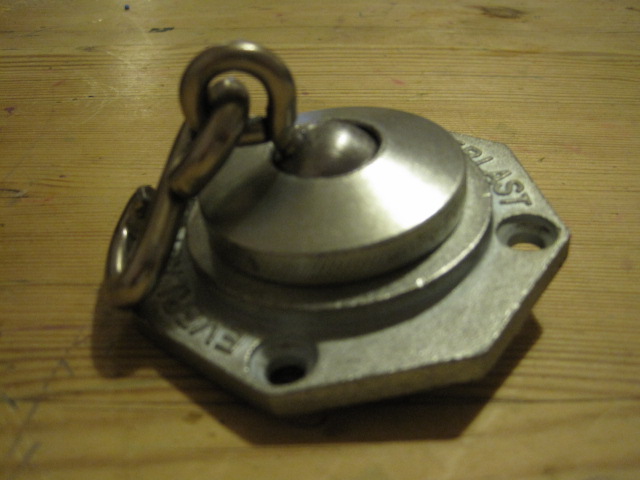

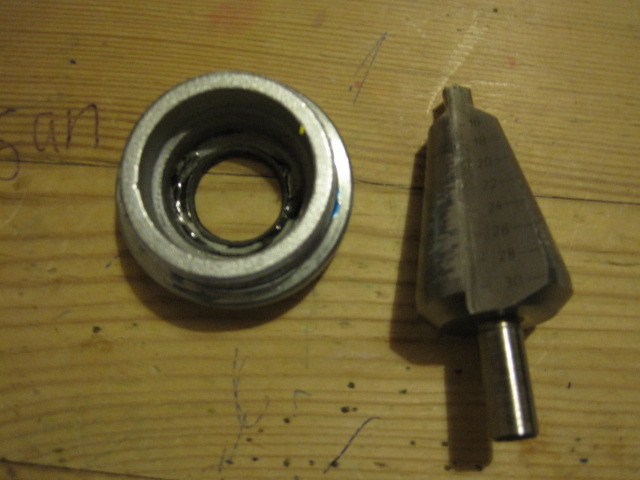

I used a cone drill to open the hole up in the chain link lower housing, drilling from the inside to out. Then I cleaned and polished using Emery cloth and wet n dry. (pic #4-5)

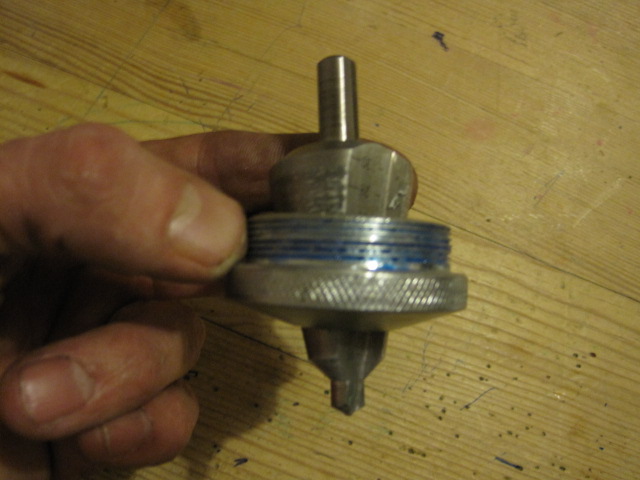

I applied a drop of loctite/thread lock to the 'S' hook thread (pic #6)

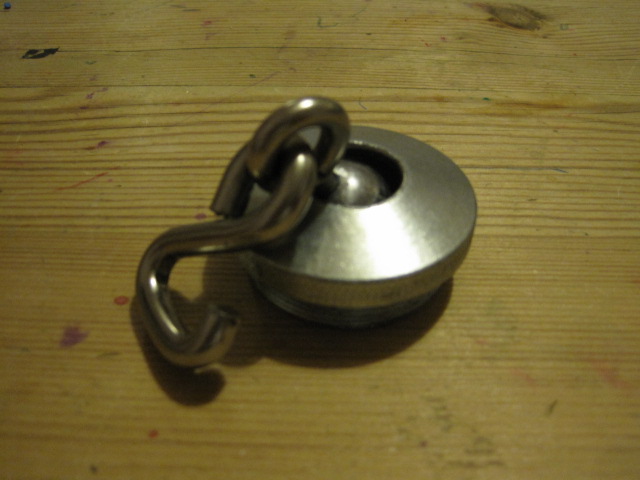

The ball was dropped into the lower housing and the 'S' hook was screwed in. (pic #7)

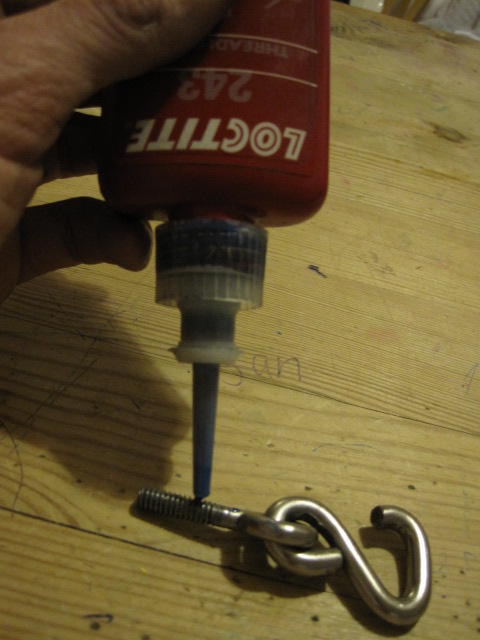

I put another drop of loctite onto the lower housing threads. (pic #8)

Both the lower and upper housing were put together. (pic #9)
